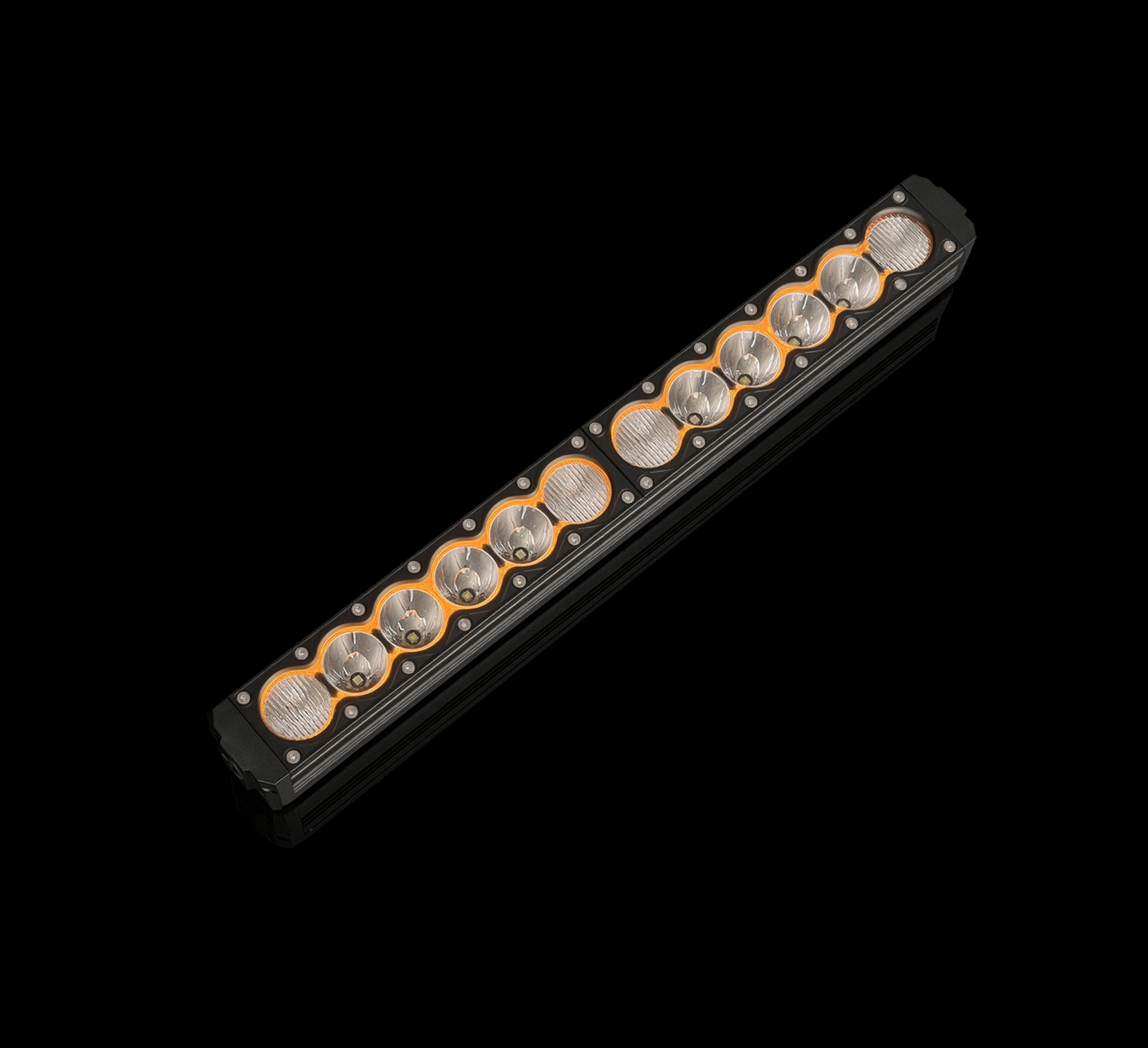

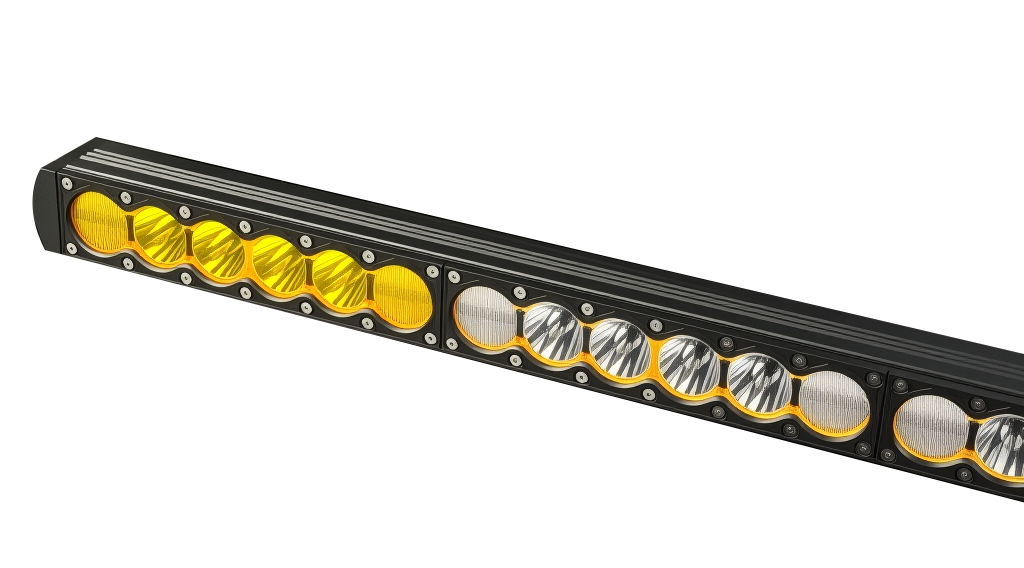

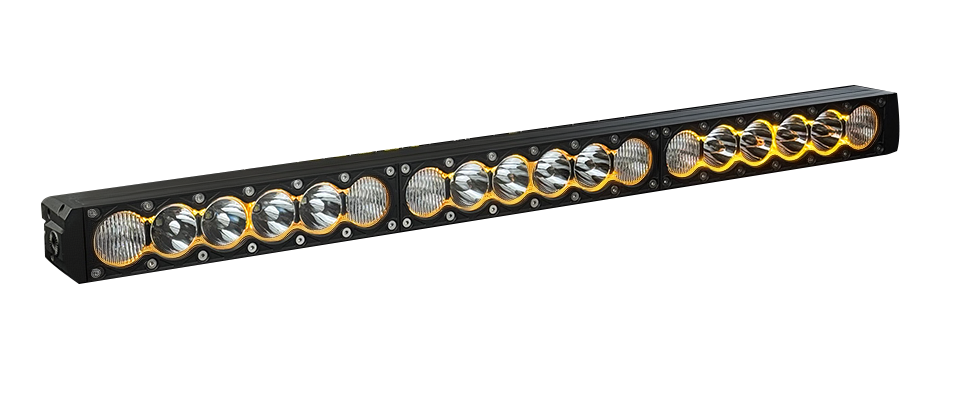

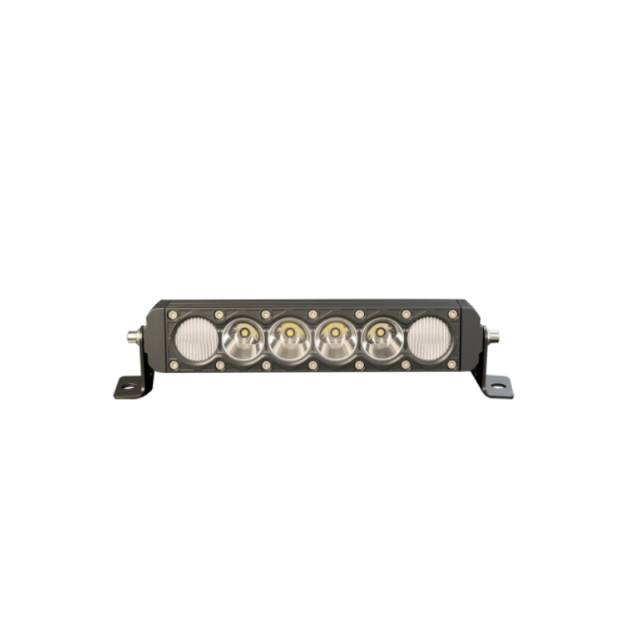

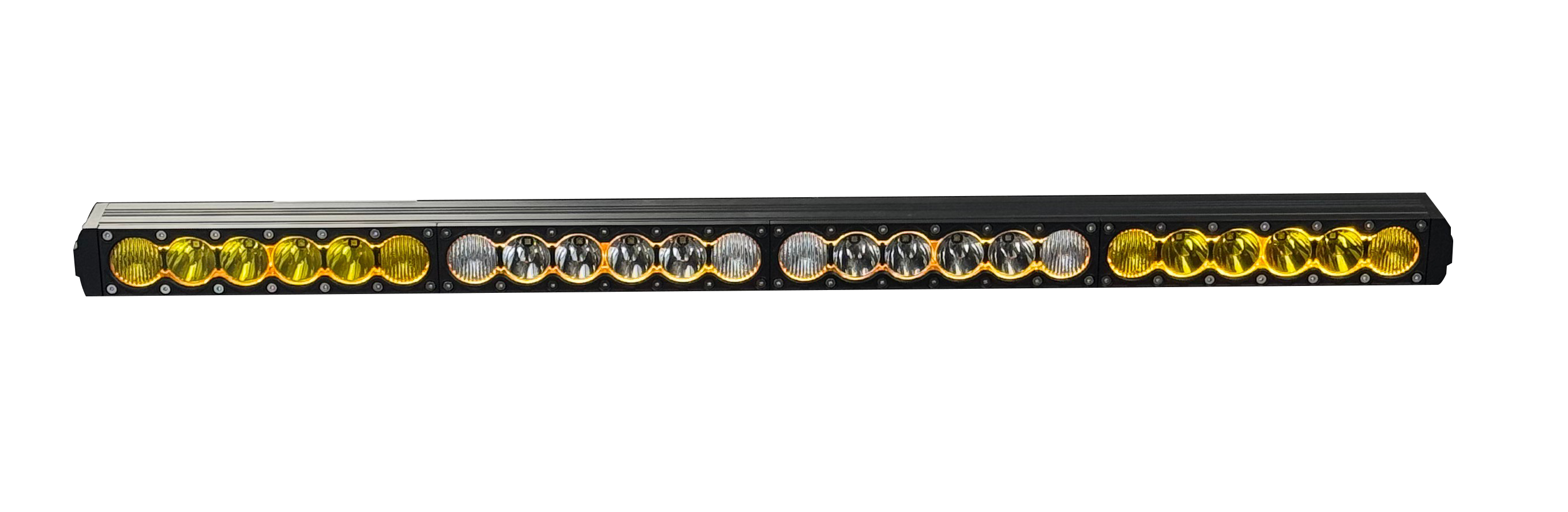

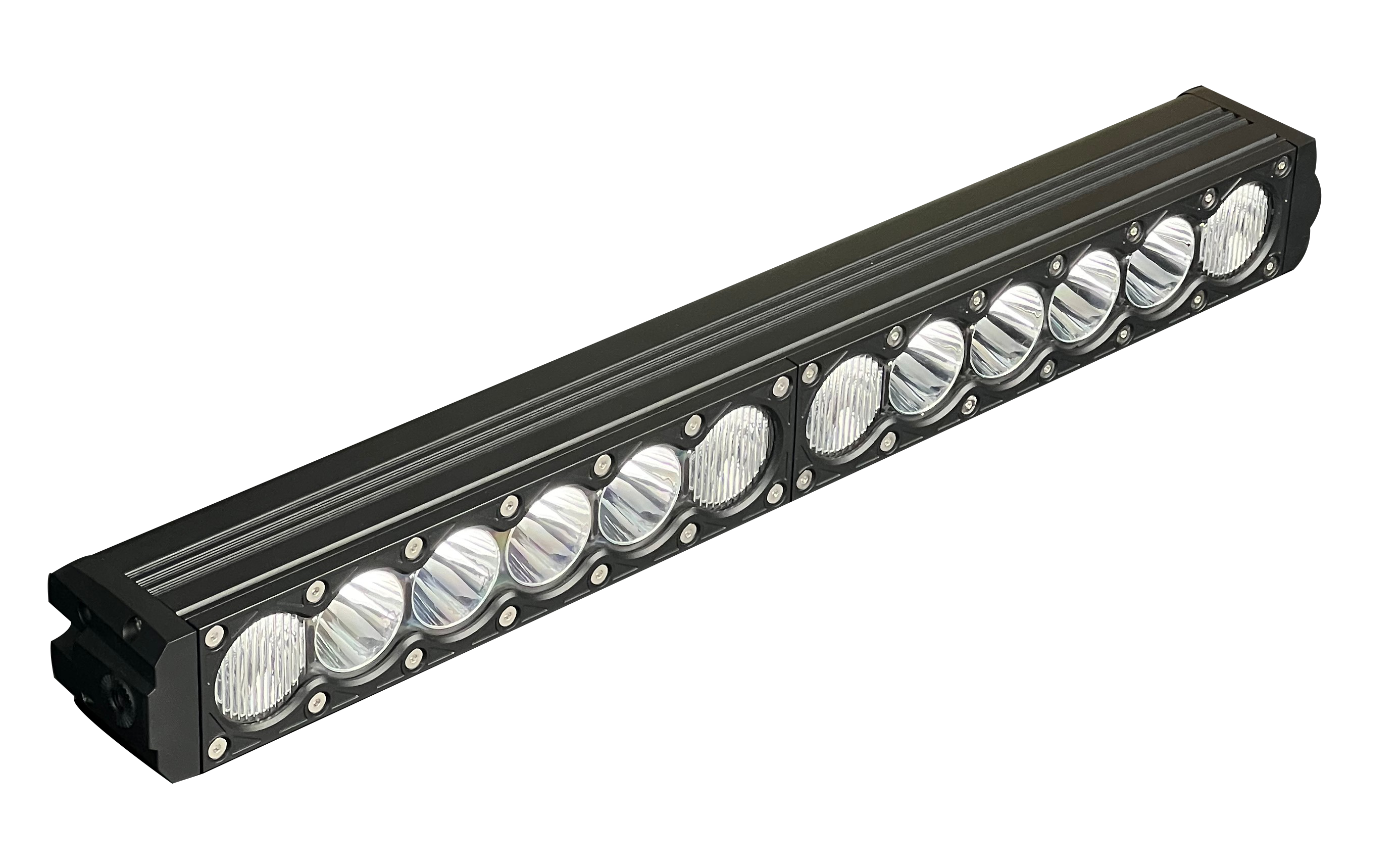

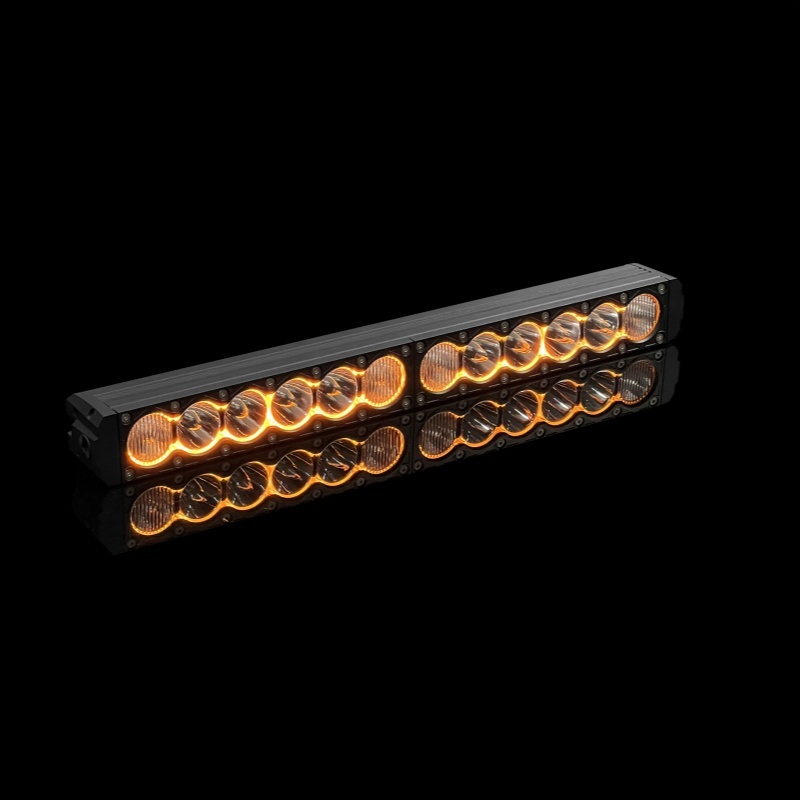

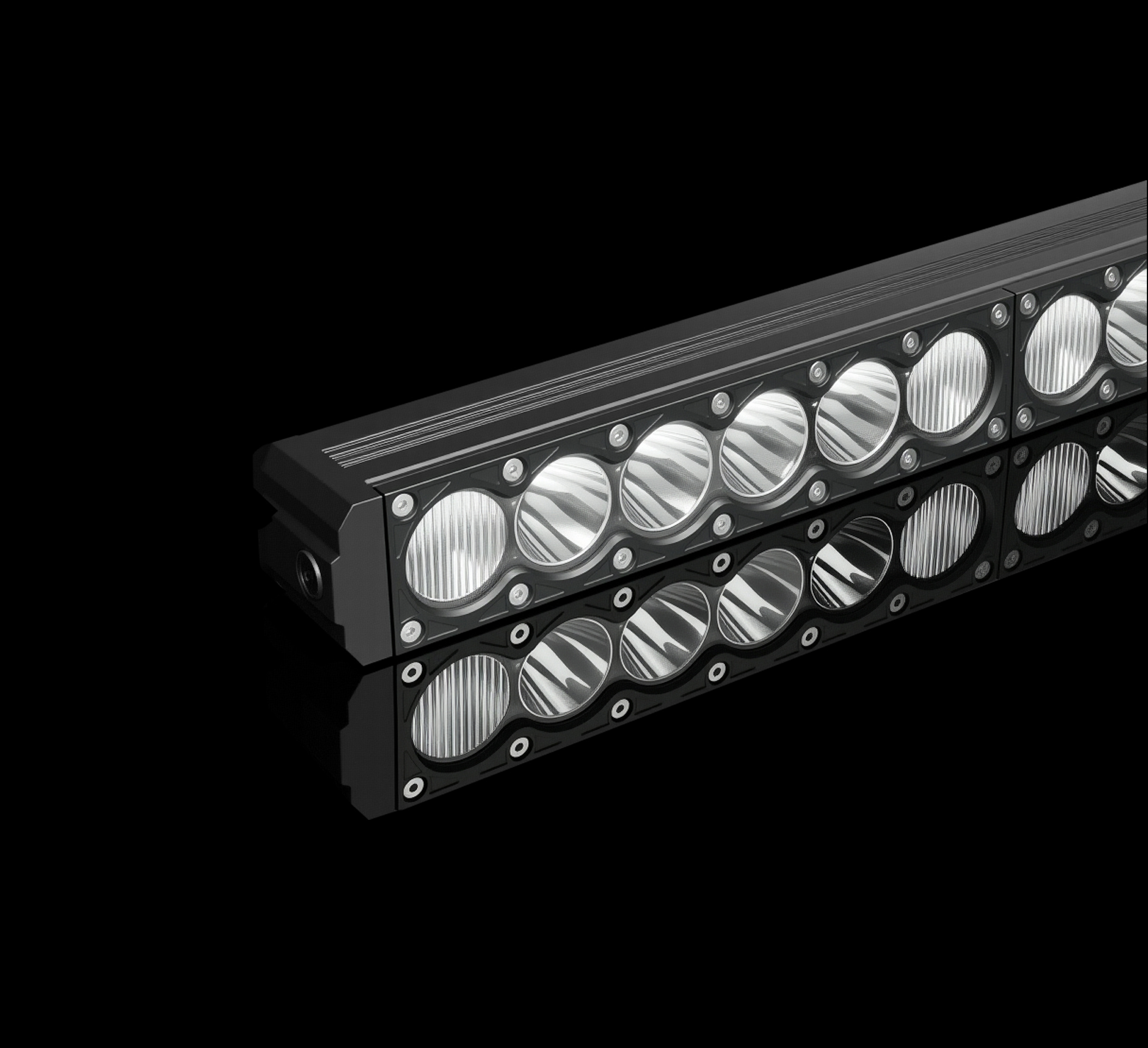

Single Row LED Light Bar Luminus 24WLED Or 20W LED Options With White/Yellow/Combo Color 63# SERIES

Name: Single Row LED Light Bar Luminus 24WLED Or 20W LED Options With White/Yellow/Combo Color 63# SERIES
Brand: FoShan ShanShan Electronic & Technology Co.,Ltd.
SKU: 63# SERIES
Rating: 5 (1 reviews)

No.63# SERIES

This high-performance LED lighting device adopts Luminus LED chips (20W) white or yellow spot flood combo beam with amber backlight options, use an aluminum housing for durability and heat dissipation. It supports 9-36V DC voltage, features a spot beam pattern, and covers 136-680W power with 7172-31046 lumens. With side/bottom mounting, IP68 waterproofing, CE/ROHS certifications, and 12/22/32/42/52 inch size options.

GET A QUOTE

Description

Product Type:63# SERIES

Category	Parameter Item	Parameter Content
Specification	LED Chips	Luminus 24W LED & 20W LED with White/Yellow/Combo Color
Specification	Material	Aluminum
Specification	Voltage	9-36V DC (Direct Current)
Specification	Mount	Side / Bottom Mount
Specification	Beam Pattern	Spot
Parameter	Size	12-52 inch (in)
Parameter	Lumen	7172-31046 Lm (Lumens)
Parameter	Power	136-680W (Watt)
Parameter	Color	White/Yellow/Combo
Specification	Waterproof Rating	IP68
Specification	Certificate	CE/ROHS

Operational Lumens Output	7172lm	Vibration
Colour Temperature	6000-6500 K	Lens	PC
Norminal Voltage DC	12 - 24 V	Body/Housing	Aluminum
Input Voltage DC	9 - 32 V	Weight	1264g
Power Consumption	136W	IP Rating	IP68
Nominal Current at	24V=5.6A,12V=11.3A	Salt Sprary Test	ISO 9227 240H
Connector	Built-in Deutsch DT-2(2-pin)	EMC	E8 10R-0617152 Class 5 / Class 3 (For Select)
Mount	Bottom Mount	Operating Temperatures	-40℃...+85℃（Full Power -40℃... +50℃）
Shock	60G	Part Numbers
