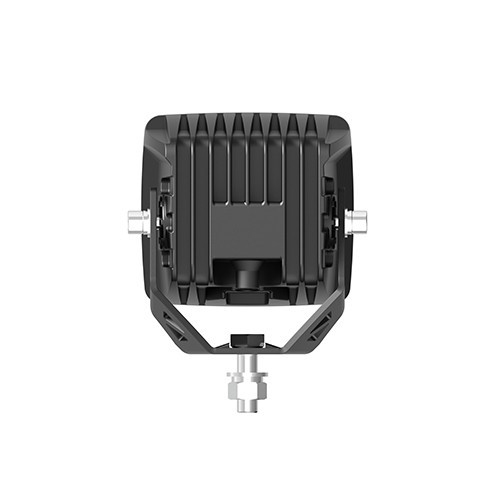

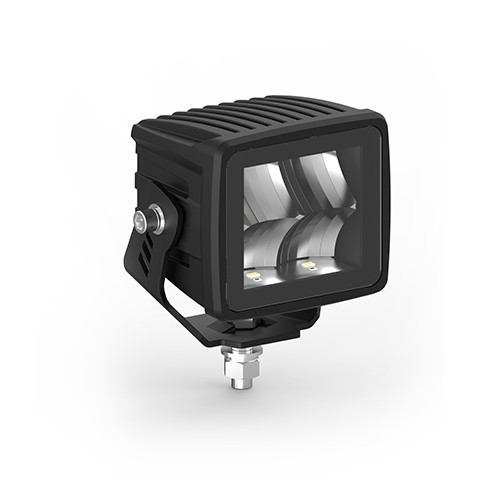

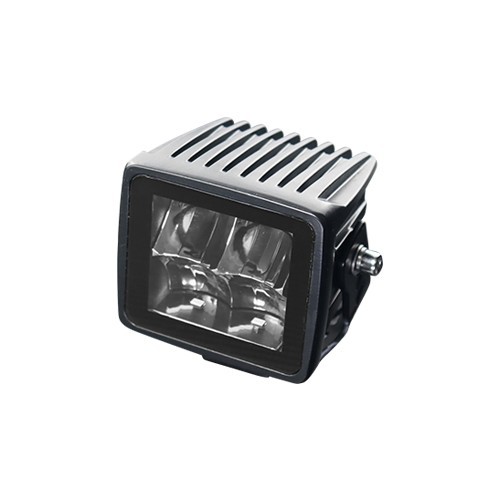

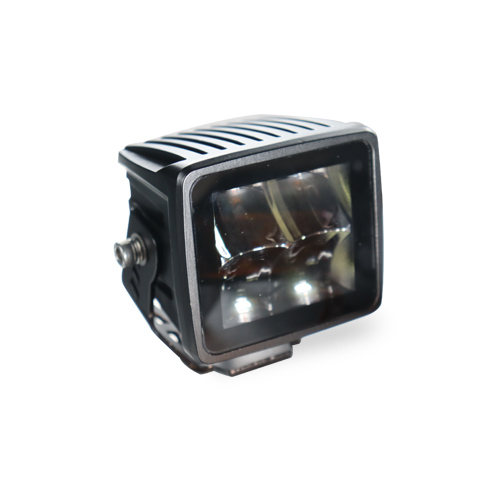

SENSE LED POD LIGHT 40 Watt

No.SS-3028-40W

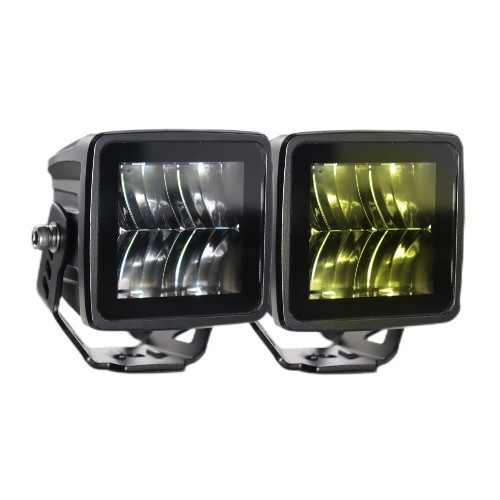

Which have White & Yellow Beam For Select. Wide Lighting Output Design.
  • SENSE LED POD LIGHT 40 Watt
  • SENSE LED POD LIGHT 40 Watt
  • SENSE LED POD LIGHT 40 Watt
  • SENSE LED POD LIGHT 40 Watt
  • SENSE LED POD LIGHT 40 Watt

Description

SERIES:SS-3028-40W

Category Parameter Item Parameter Value
Product Features Power Square 3" JingRui H4-10W*4PCS
Product Features Beam Type Spot Beam Only
Product Features PC Lens Select Clear, Yellow
Product Features Luminous Flux 3840 LM
Product Features Product Size 81.7*73*74.6mm
Product Features Mounting Bottom Mounts
Product Features Operating Voltage 9-32V DC
Product Features Material Aluminum, Die-Casting PC Lens
Product Features Service Life 50000 hours+
Product Features Warranty Two year warranty
Additional Product Characteristics Special Technology Moisture Breather technology (reduces moisture build-up behind the lens)
Operational Lumens Output 3840lm Vibration
Colour Temperature 6000-6500 K Lens PC
Norminal Voltage DC 12 - 24 V Body/Housing Aluminum
Input Voltage DC 9 - 32 V Weight 293g
Power Consumption 40W IP Rating IP68
Nominal Current at 24V=1.6A,12V=3.3A Salt Sprary Test ISO 9227 240H
Connector Built-in Deutsch DT-2(2-pin) EMC E8 10R-0617152 Class 5 / Class 3 (For Select)
Mount Bottom Mount Operating Temperatures -40℃...+85℃(Full Power -40℃... +50℃)
Shock 60G Part Numbers
