| Category | Parameter Item | Parameter Value |
|---|---|---|
| Product Features | Power | 40W |
| Product Features | LED Type | JINGRUI 5050 10W*1PC |
| Product Features | Beam Type | Spot Only |

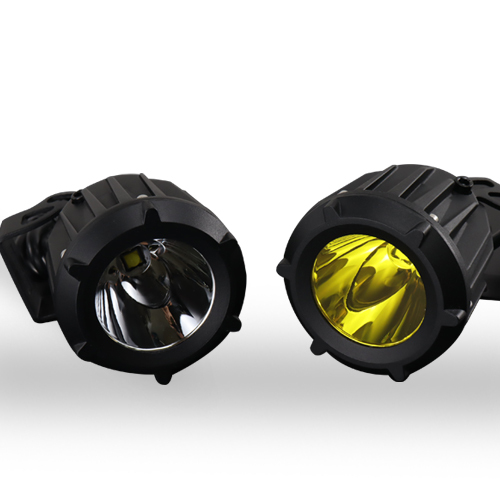

| Product Features | PC Lens Select | Clear / Yellow |
| Product Features | Luminous Flux | 3840 LM |
| Product Features | Mounting | Durable powder-coated steel brackets |
| Product Features | Operating Voltage | 9-32V DC |
| Product Features | Service Life | 50000 hours+ |
| Product Features | Warranty | Two year warranty |
| Product Features | Waterproof Rating | IP68 |
| Additional Product Characteristics | Housing & Lens Material | Durable die-cast aluminum housing, PC Lens |
| Operational Lumens Output | 3840lm | Vibration | ||
| Colour Temperature | 6000-6500 K | Lens | PC | |
| Norminal Voltage DC | 12 - 24 V | Body/Housing | Aluminum | |
| Input Voltage DC | 9 - 32 V | Weight | g | |
| Power Consumption | 40W | IP Rating | IP68 | |
| Nominal Current at | 24V=3.3A,12V=6.6A | Salt Sprary Test | ISO 9227 240H | |
| Connector | Built-in Deutsch DT-2(2-pin) | EMC | E8 10R-0617152 Class 5 / Class 3 (For Select) | |
| Mount | Bottom Mount | Operating Temperatures | -40℃...+85℃（Full Power -40℃... +50℃） | |
| Shock | 60G | Part Numbers |
