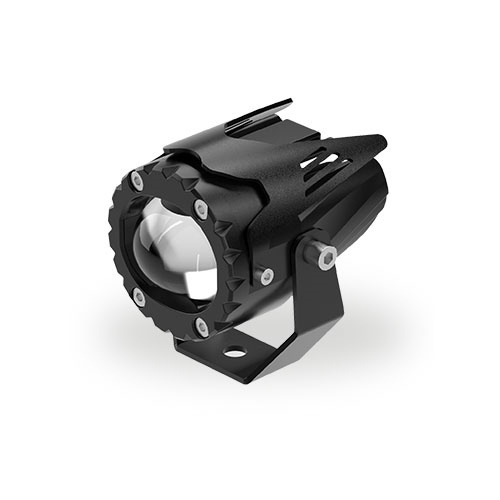

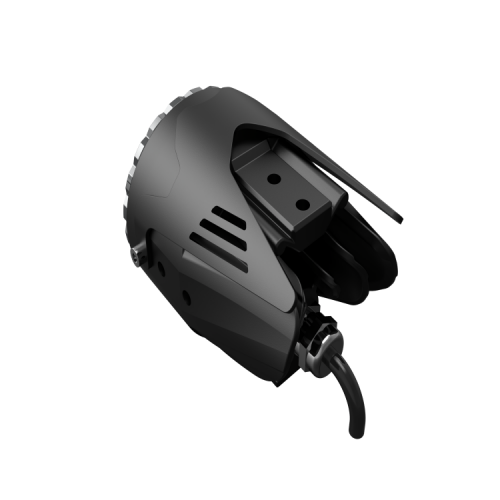

NEW 2.4 Inch Motor Light LED Working Light

No.SS-3036-50W ( 2.4
Single White Or Dual Color White-Amber For Select.
  • NEW 2.4 Inch Motor Light LED Working Light
  • NEW 2.4 Inch Motor Light LED Working Light
  • NEW 2.4 Inch Motor Light LED Working Light
  • NEW 2.4 Inch Motor Light LED Working Light
  • NEW 2.4 Inch Motor Light LED Working Light

Description

SERIES:SS-3036-50W

Category Parameter Item Parameter Value
Product Features Power 50W (2PC*25W)
Product Features LED Type Dual Color 3570 New KOER LED Chip
Product Features Beam Type Spot
Product Features Operating Voltage 9-32V DC
Product Features Luminous Flux 2536 LM
Product Features Size 61.6*85.6*123mm

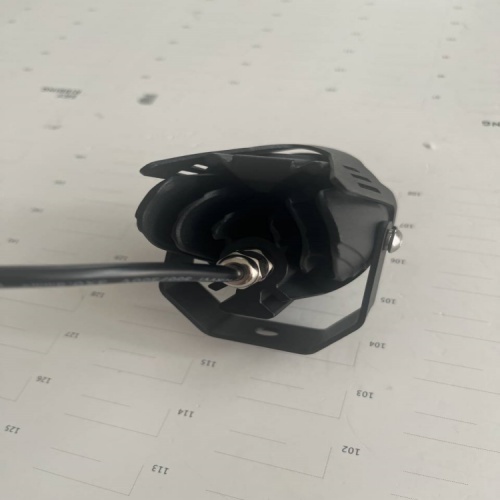

Product Features Mounting Type Bottom / (U Shape) Side Mounts

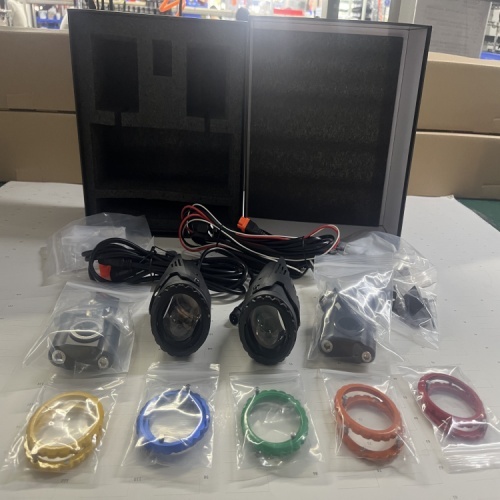

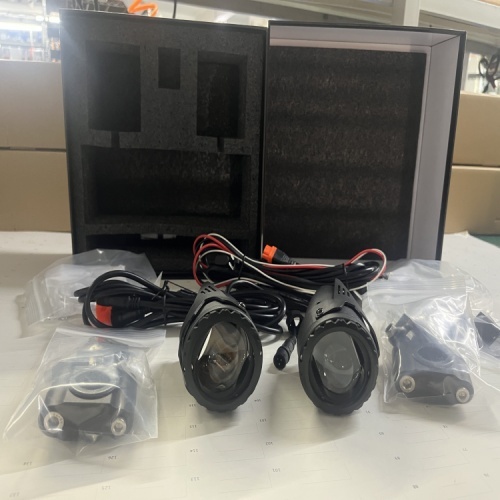

Product Features Product Included 2 PC Light + Mounting Bracket + One Set Support Harness
Product Features Regular Frame Color Regular Black
Product Features Other Frame Color Yellow, Blue, Green, Orange, Red
Product Features Application Automobiles And Motorcyles

Operational Lumens Output 2536lm Vibration
Colour Temperature 6000-6500 K Lens PC
Norminal Voltage DC 12 - 24 V Body/Housing Aluminum
Input Voltage DC 9 - 32 V Weight 404g
Power Consumption 50W IP Rating IP68
Nominal Current at 24V=2.0A,12V=4.1A Salt Sprary Test ISO 9227 240H
Connector Built-in Deutsch DT-2(2-pin) EMC E8 10R-0617152 Class 5 / Class 3 (For Select)
Mount Bottom Mount Operating Temperatures -40℃...+85℃(Full Power -40℃... +50℃)
Shock 60G Part Numbers
