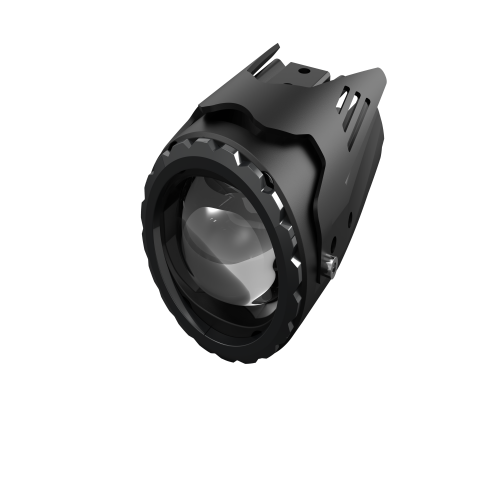

LED Motor Light 2.5" Single color Dual color For Select high intensity led chips SS-3036B

Name: LED Motor Light 2.5" Single color Dual color For Select high intensity led chips SS-3036B
Brand: FoShan ShanShan Electronic & Technology Co.,Ltd.
SKU: SS-3036-25W

No.SS-3036-25W

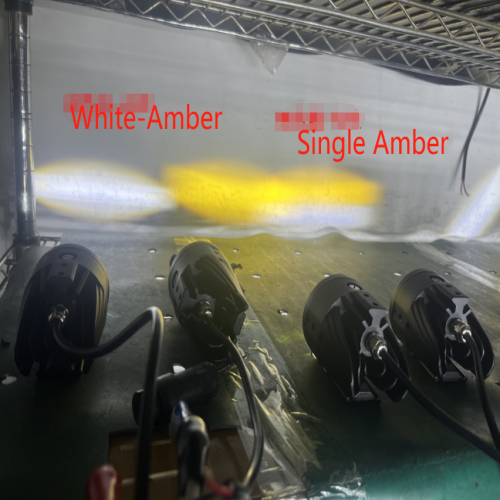

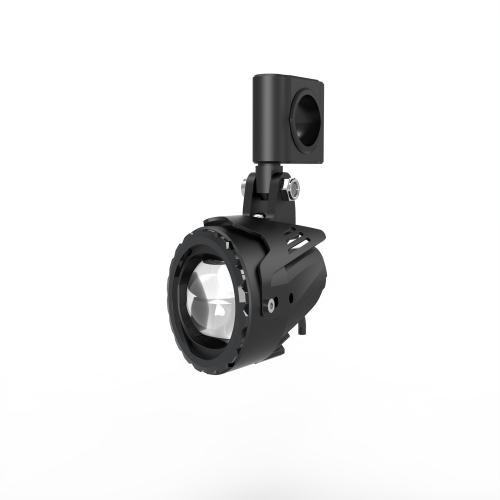

LED Motor Light Single color White Dual color White-Amber For Select, Bottom mounting brackets Or U Shape Mount for select.

GET A QUOTE

Description

SERIES:SS-3036-25W

Category	Parameter Item	Parameter Value
Product Features	Power & Wiring (Design-1)	Single Color 22W Spot Beam (Two Pin Wiring); New 3570 New KOER LED Dual Color 25W LED Chip (Three Pin Wirings)
Product Features	Current Draw	13.5V@1.7A
Product Features	Quantity	High intensity 1PC or 2PCS
Product Features	Size	Ø6086mm

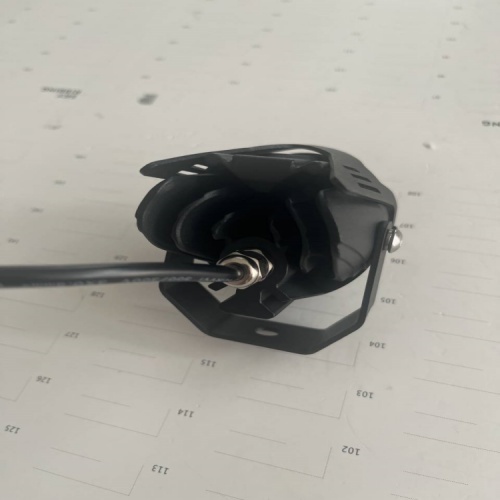

Product Features	Mounting	Bottom / Side Mount
Product Features	Beam Type	60 degree Wide beam
Product Features	Waterproof Rating	IP68
Product Features	Housing Material	Durable die cast aluminum housing

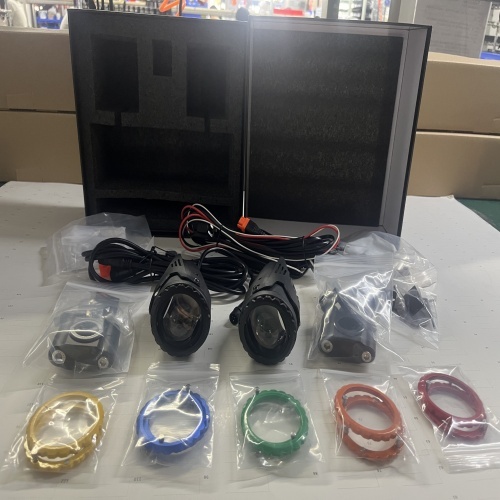

Product Features	Frame Color	Regular Black, Yellow, Blue, Green, Orange, Red

Operational Lumens Output	2536lm	Vibration
Colour Temperature	6000-6500 K	Lens	PC
Norminal Voltage DC	12 - 24 V	Body/Housing	Aluminum
Input Voltage DC	9 - 32 V	Weight	404g
Power Consumption	25W	IP Rating	IP68
Nominal Current at	24V=1.0A,12V=2.0A	Salt Sprary Test	ISO 9227 240H
Connector	Built-in Deutsch DT-2(2-pin)	EMC	E8 10R-0617152 Class 5 / Class 3 (For Select)
Mount	Bottom Mount	Operating Temperatures	-40℃...+85℃（Full Power -40℃... +50℃）
Shock	60G	Part Numbers

LED Motor Light 2.5" Single color Dual color For Select high intensity led chips SS-3036B
